Mine Monitoring: Enhancing Safety,
Increasing Productivity.

GeoWAN Triaxial Tilt Sensor Nodes

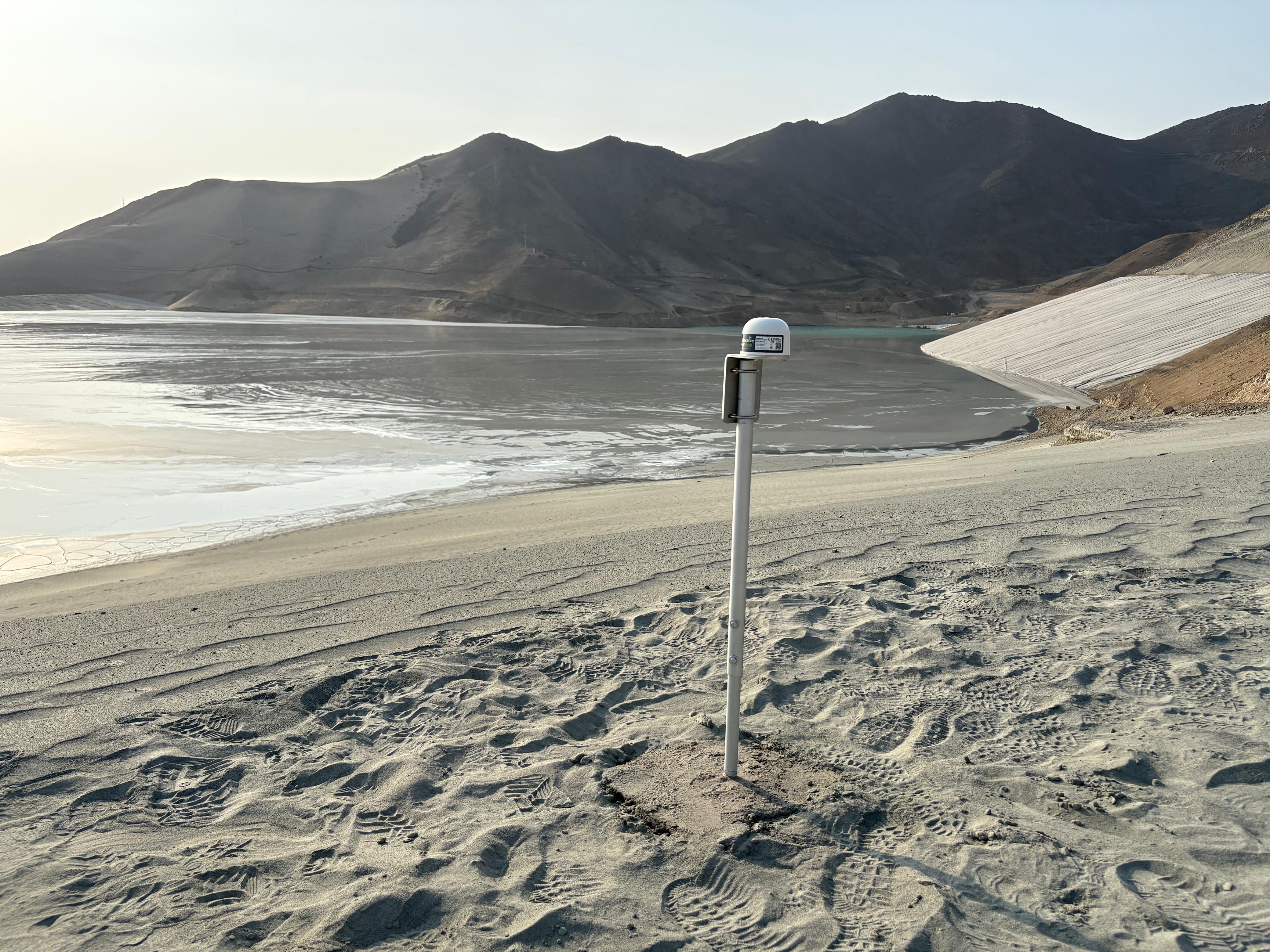

GeoWAN wireless tilt sensors mounted on stakes to detect rotational ground movement. They send scheduled data updates and can trigger automated alarms when thresholds are breached.

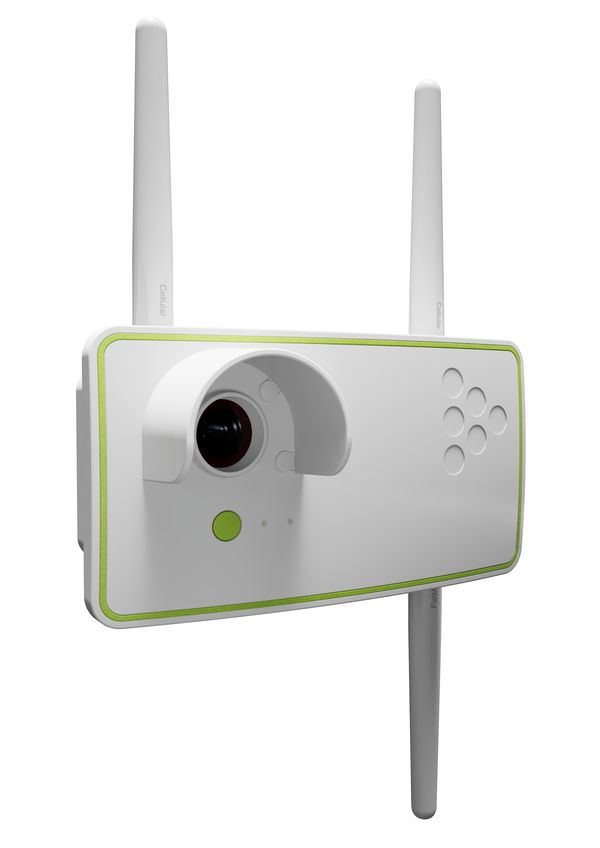

FlatMesh^TM 4G Camera

The solar-powered 4G Camera can take great quality black and white photos of your site day or night. It can be set to take photos at regular intervals, on demand or when triggered by movements detected in nearby sensors.

InfraGuard^TM

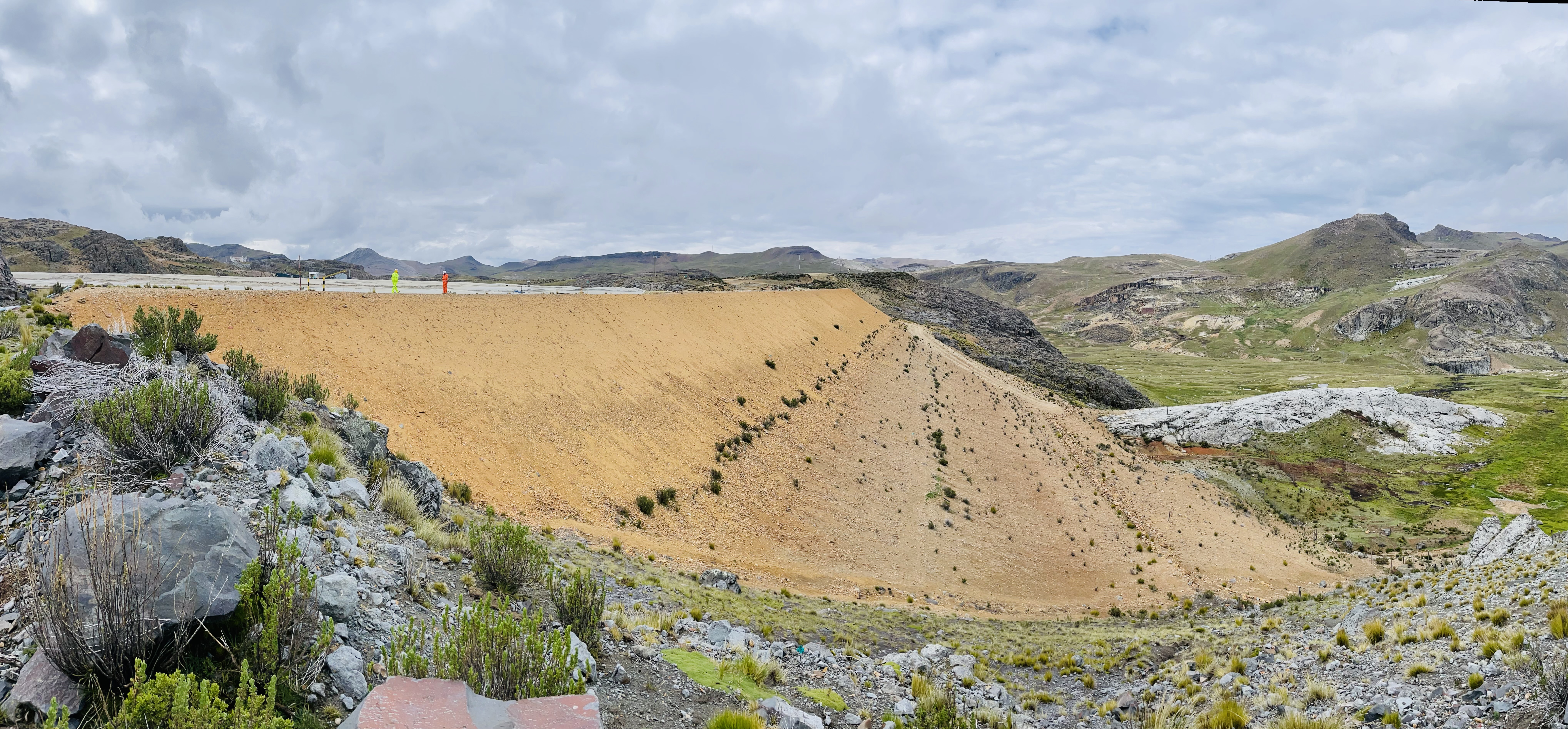

Intelligent FlatMesh^TM tilt sensors mounted on stakes detect rotational movement in the tailings dam slope. They detect incremental deformation as well as sudden events as they happen, regardless of the pre-set sampling schedule.

When a camera is integrated, users get scheduled photos, as well as immediate photos during sudden events.

GeoWAN Satellite Communications

The GeoWAN Satellite Communications system can provide communication to remote locations with no cellular signal and enables a user to operate a GeoWAN wireless sensor network.

The GeoWAN Sat Comms provides a GeoWAN gateway for up to 100 remote GeoWAN sensors via a satellite terminal.

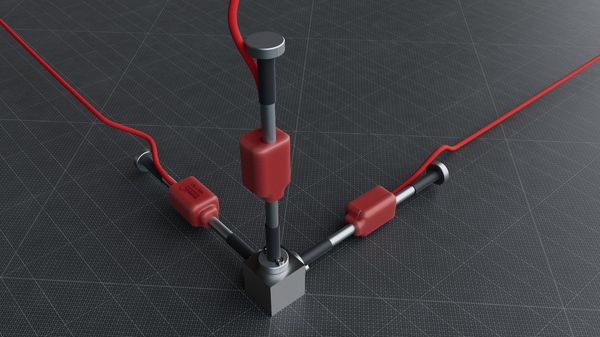

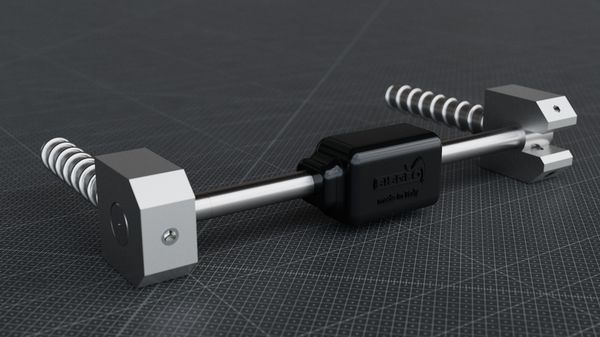

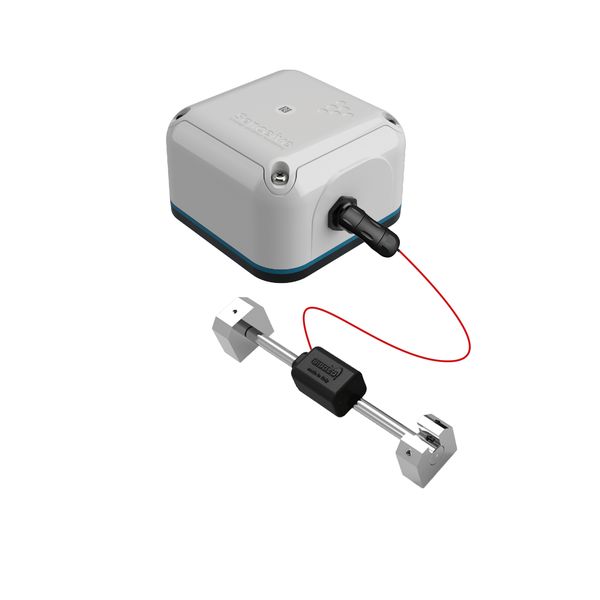

Vibrating Wire Sensor Nodes with strain gauges

The Vibrating Wire Sensor Node supports a variety of interface sensors such as crack or strain gauges and extensometers.

Here it is connected to a strain gauge and prevents the need for manual monitoring by transmitting data over a wireless network.

Crack Sensor Node

The Crack Sensor Node monitors displacement across a crack or a joint. Here it is monitoring the movement of a crack on the tunnel surface.

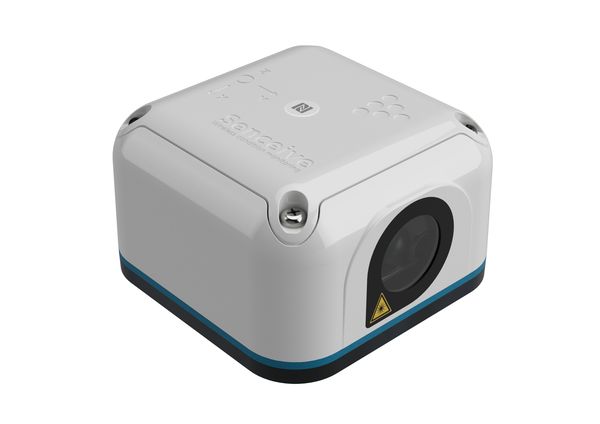

Optical Displacement Sensor Node

The ODS combines a tilt meter and a laser displacement sensor. Together they provide information about the stability of the structure the sensor is fixed to and the relative movement of a target structure.

In a tunnel, ODS nodes are normally installed in a triangular configuration to measures tunnel convergence.

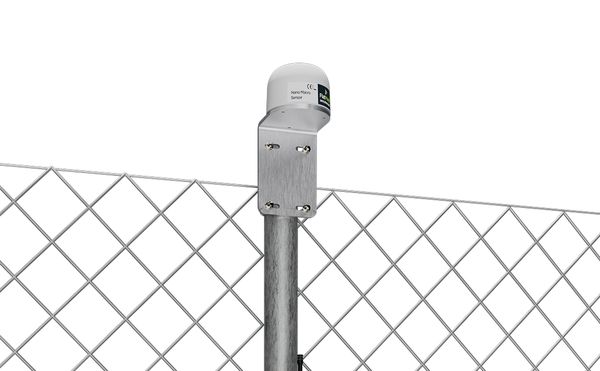

Nano Triaxial Tilt Sensor Nodes

The FlatMesh^TM Nano is a wireless tilt meter for precise measurement of rotational movement in a compact, robust enclosure. With no external antenna, the Nano is ideal for the most challenging environments. It offers NFC for user-interaction.

Here it is monitoring the structural stability of a conveyor belt, tower, catch fence, and processing plant.

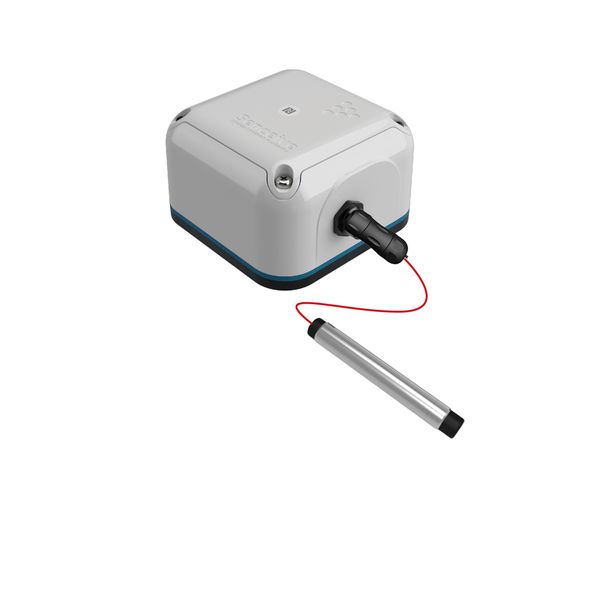

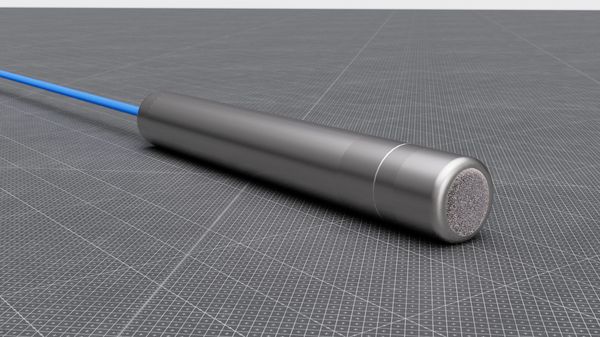

Vibrating Wire Sensor Node with nested piezometers

An interface node that supports a variety of sensors such as crack or strain gauges and extensometers. Here it is connected to borehole piezometers, transmitting data on pore water pressure and groundwater level.

Digital Interface Node

The Digital Interface Node is a wireless digital data logger that enables automated sampling. It is compatible with many types of sensor that carry a digital output. Interact and manage your data online and change reporting times and thresholds remotely.

The Digital Interface Node is compatible with InfraGuard^TM. Choose this responsive reporting option when you need dynamic reporting. This means your sensors can be self-managing tools that react to changing site conditions. Features include accelerated sampling, triggered site photos and escalated alerting, with near real-time notifications.

Digital Interface Node

The Digital Interface Node is a wireless digital data logger that enables automated sampling. It is compatible with many types of sensor that carry a digital output. Interact and manage your data online and change reporting times and thresholds remotely.

The Digital Interface Node is compatible with InfraGuard^TM. Choose this responsive reporting option when you need dynamic reporting. This means your sensors can be self-managing tools that react to changing site conditions. Features include accelerated sampling, triggered site photos and escalated alerting, with near real-time notifications.
